Specification:

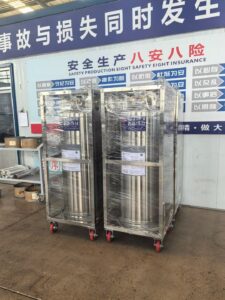

Model: DPL700-450
Nominal Volume: 450 Liters
Effective Volume: 414 Liters
Working Pressure (MPa): 3.17
Minimum/Maximum Operating Temperature (°C): -196/25
Air Tightness Test Pressure (MPa): 3.17
First-Stage Safety Valve Open Pressure Setting MPa (≤): 3.45
Bursting Pressure Setting of Inner Tank Bursting Disc MPa (≤): 5.17
Static Evaporation Rate %/d (Liquid Nitrogen): 1.9
Container Empty Weight (Kg): 417
Overall Dimensions (mm): ⌀766x1640
Frame Size (mm): 890x890x1900
Maximum Filling Capacity (Kg): 163
